PRODUCT OVERVIEW & PRINCIPLE OF OPERATION

FOAMTECH ILP and IHP — Indirect Release Low-Pressure and High-Pressure Clean Agent Systems are primarily pre-engineered automatic fire detection and suppression systems utilizing various low-pressure clean agents, i.e., HFC227ea, Novec1230/FK-5-1-12, FE36, etc.

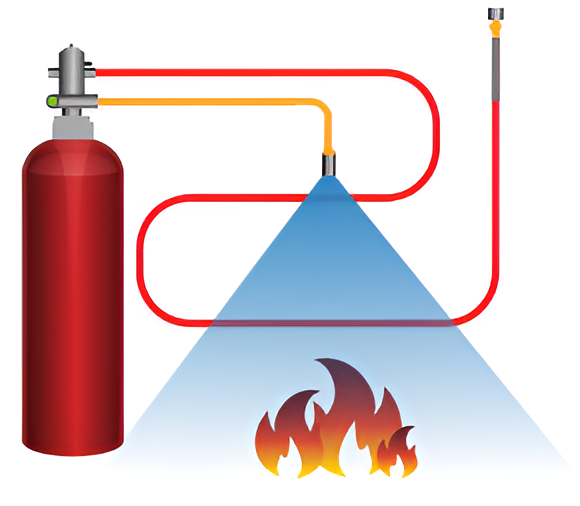

The FOAMTECH Linear Pneumatic Fire Detection Tubing (LP-FDT) is installed and connected to ILP Valve and routed throughout the protected hazard area/enclosure. The primary function of the Linear Pneumatic Fire Detection Tube (under pressure) is to detect heat/fire and activate the valve for discharge of the agent by rupturing at the hottest point along its installed length on flame impingement.

On rupture due to loss of pressure in the tube connected to the valve, the pressure from the top assembly of the ILP valve is released (can be done by both automatic or manual activation), thereby the internal piston slides to its fully open position, allowing the pressurised Clean agent to travel through any or a combination of three outlet ports via delivery hoses/pipes and discharge out from the fixed nozzles within the protected area, flooding the entire area with the agent and suppressing the fire instantly.

Note: To assist annunciation, both Direct & Indirect Low Pressure systems can be connected to FACP through optional pressure switch & potential free contact arrangement.

Listing & Approvals: UL Listed Foamtech Fire Detection Tube
UL/FM/EN-approved suppression agents
Filled in UL Listed & PESO-approved fill plant
CE-Approved Cylinders
Overall system in CE approved.
The system is in compliance with NEPA 2001 (Edition 2015—latest).
